Marine Rubber Airbag Introduction
Marine rubber airbag is an innovative product of Chinese own proprietary intellectual
property rights. It has wide application like ship launching & upgrading, caisson lifting &
moving, heavy weights lifting, underwater-engineering buoyancy aid. The marine rubber
airbag is not limited to space and heavy machinery, which could efficiently shorten the
construction period and save lots of funds.
Advantage
1. Special synthetic tire cord layer material
Our "rescue tire" is made of a special synthetic tire cord layer, and its performance is much better than PVC coated fabric.
2. High pressure design
The maximum working pressure of the fishing pipe is 0.25Mpa. This means that they can be used at a depth of 25m.
3. Integral screw type wrapped rescue airbag
Our "ship rescue airbag" is a completely enclosed tube with a tapered end. It is manufactured using integral screw technology. This design ensures that there are no welds. This makes it stronger than RF welded salvage airbags.
4. With accessories
Our rescue kit is equipped with nylon straps and shackles with a safety factor of 6:1
Production structure

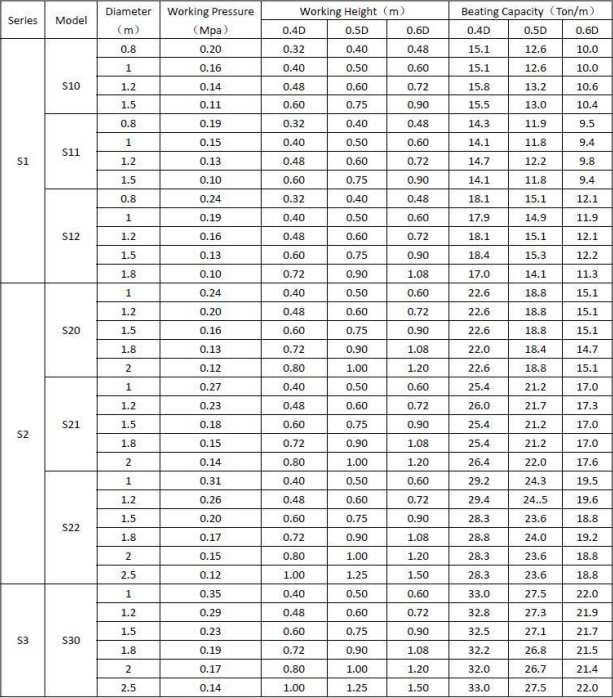

Marine Rubber Fender Specification
Technical requirements for marine airbags:
According to CB/T 3795-1996, marine airbags should meet the technical requirements
1. Size deviation
The deviation of diameter and effective length is -2%---+2%,
The deviation of the total length is -4%---+4%
2. Elastic deformation
When using 1.2 times the working pressure as the experimental pressure, the diameter deformation is not more than 5%
3. Safety factor
Safety factor is not less than 4.5
4. Airtightness
Inflate for 1h, the pressure drop is not more than 5%
5. Appearance requirements
Linear smooth, no cracks and bubbles, heavy skin, mixed impurities and obvious dirt and other visual defects.
6. Safety inflation device
The safety valve should be installed on the capsule, and the trip pressure of the safety valve should be 1.25 times of the working pressure.
Packing and shipping:
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Company Introduction:
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
|
|
