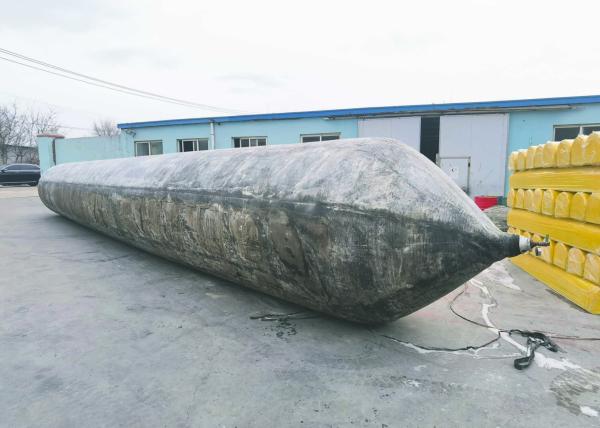

Inflatable Ship launching Rubber Marine Airbag
Introduction
Marine Rubber Airbag also known as rubber airbag, ship air bags, ship launching airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.
Specifications
| Diameter | Working Pressure | Working height | Bearing capacity per unit length |
| KN/m | Ton/m |
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 |
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 |
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 |
| 0.7m | 163.43 | 16.66 |
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 |
| 0.9m | 155.59 | 15.86 |
| 0.8m | 172.85 | 17.62 |
| 0.7m | 190.22 | 19.39 |
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 |
| 1.0m | 157.16 | 16.02 |
| 0.9m | 172.85 | 17.62 |
| 0.8m | 188.64 | 19.23 |
Application
1.Ship Launching & Upgrading
2.Weight Lifting & Moving
3.Buoyancy Aid & Salvage
Features
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
Upgrade of the airbag end fittings
The material and structure were reformed respectively :
1. Material: The upgraded end fittings are made of stainless steel, which is more resistant to corrosion than the previous hot-dip galvanized material.
2. Structurally: Technical changes have been made to the structure design of the end, and the air retention performance has been greatly improved. After testing, our airbags can be air-tight for 24 hours.
Service life
Marine rubber airbags are not single-use products. It can be used for many times. But cannot define the exact number.
General speaking marine airbags have 5~8 years lifespan under the correct usage and proper maintenance.
Custom logo
We can customize the airbags metal end fitting for you, so you can choose to print your own logo on it.
Whether you use airbags yourself or sell it, it will be your style.
The better news is that we can do this for you for free !
Real-time production dynamic sharing
In order to assure you of the quality of the products and the status of the whole goods, our factory can show you the production and delivery status of the goods by video at any time.
